The Facts


The Flying Mantis is hand built, custom painted, high specification, leading edge designed, fast and fun.



Speed


~25

Knots

Speed testing continues.


Main Hull


4.2

metres

Length, water line: 4.2m (13’9”)
Length, overall: 4.65m (15’3”)
Beam: 0.5m (1’8”)
Weight: c.25kg

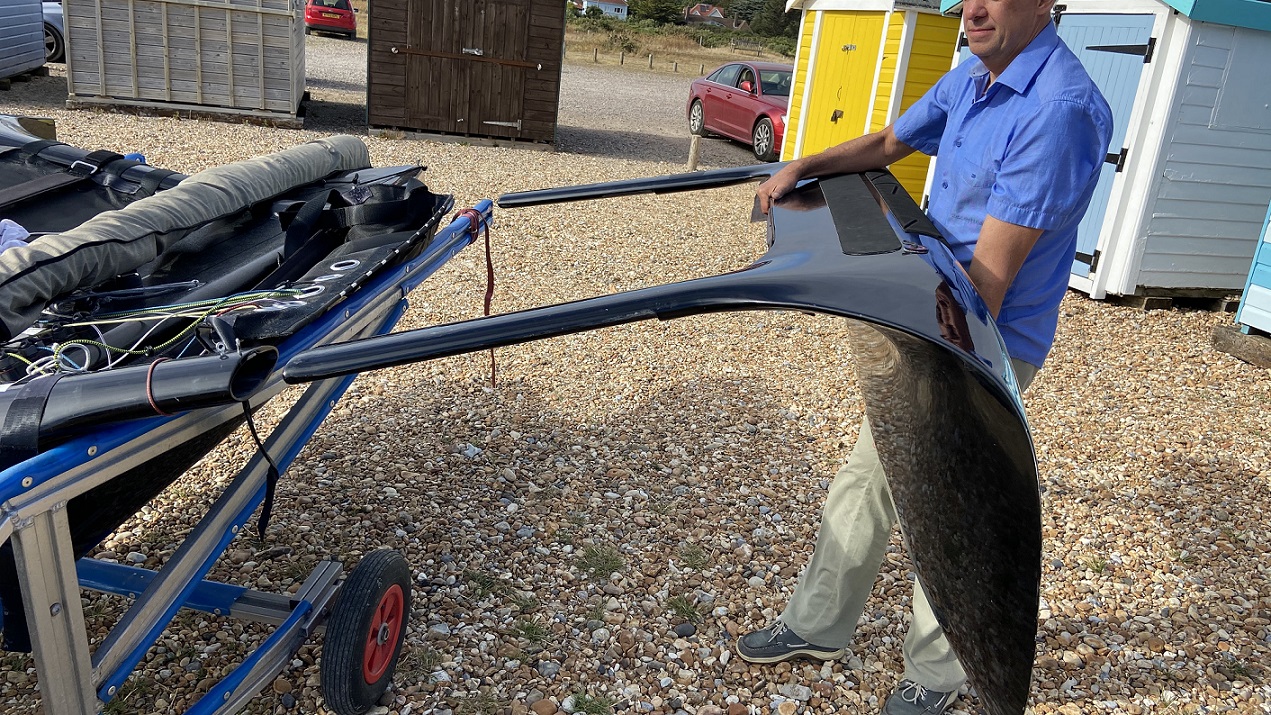

Outriggers


2.5

metres

Length: 2.5m (8’2”)
Beam: 0.14m (5.5”)
Weight: 12.5kg each
Cross beam join appears seamless.


Overall Beam


2.4

metres

Overall beam: 2.4m (7’10”)
Outriggers easily disassembled while mast up


Sails


11.2

metres²

North Sails One Design
Main: 8.8 sqm
Self-tacking Jib: 2.4 sqm


Mast


6.3

metres

Elliptical carbon 2-part Selden mast.
Carbon halyard track.
Forestay, shrouds & lowers.


Boom


2.3

metres

Carbon boom: 2.3m (7’6″).
Gnav instead of kicker/vang.


Foils


2-4

foils

Daggerboard and lift-up rudder (DBS version) plus rudder and central T-foils (Foiling). All lifting and epoxy sandwich construction.


Adjustments


Harken fittings.
Central T-foil adjusted by wand control system from bowsprit.
Twist grip tiller to adjust rudder foil angle of attack.
